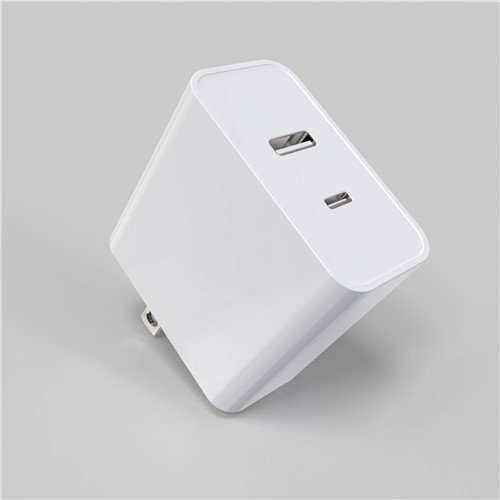

GaN 65W型号：RH-PD65W（1 C 1A）
输入：100-240Vac，50 / 60Hz。 最大1.5A
USB-C输出：5V-3A 9V-3A 12V-3A 15V-3A 20V3.25A
USB-A输出：5V /3A，9V / 3A，12V / 1.5A,MAX
USB-C输出：45W + USB-A输出：18W
尺寸：L = 53 W = 53 H = 29mm颜色：白色，黑色，OEM重量：110g
证书：CE FCC CCC ETL
FEATURES/特性
SAFETIES APPROVALS/安规认证
EFFICIENCY VI/六级能效
0-65 WATT OUTPUT POWER/0-65瓦输出电源
FCC
OVERCURRENT PROTECTION/过流保护
SHORT CIRCUIT PROTECTION/短路保护
ETL
INPUT PROTECTION/输入保护
CCC
ROHS COMPLIANT/符合RoHS标准
CB
INPUT SPECIFICATIONS/输入规格
GENERAL SPECIFICATIONS/标准规格
Input Voltage/输入电压
100~240VAC
Primary to Secondary
50MΩ MIN
Input Frequency/输入频率
50/60Hz
Efficiency/能效
VI
Input Current/输入电流
1.5A Max
Standby Power/待机电源
0.1W MAX
Inrush Current/浪涌电流
30A Max
Leakage Current
0.25mA MAX
OUTPUT SPECIFICATIONS/输出规格
ENVIRONMENTAL SPECIFICATIONS/工作环境
Output Voltage Range/输出电流范围
USB-C输出:5V-3A 9V-3A 12V-3A 15V-3A 20V3.25A
USB-A输出：5V 3A, 9V/2A, 12V/1.5A MAX
Operating Temperature/工作温度
10°C~40°C
Output Current Range/输出电流范围
Cooling/
Convection
Output Power Range/输出功率
65W max
Temperature Coefficient/温度系数
0.05%/°C
Short Circuit Protection/短路保护
Automatic Recovery/自动恢复
Humidity/湿度
5~95%RH(non-condensing)
Over-Current Protection/过流保护
Storage Temperature/储存温度
-20°C~+70%°C
Ripple and Noise/纹波和噪音
100mVp-p max
Mechanical Features/外形尺寸
Turn On Time/启动时间
20-30mS normal
Dimensions (Case Size )(尺寸)
L=53 W=53 H=29mm
Line Regulation
1% max
SAFETIES STANDARD
Output Regulation/输出范围
±5%
Safeties Standard/安规标准
