EFFICIENCY VI/六级能效

0-30 WATT OUTPUT POWER/0-30瓦输出电源

OVERCURRENT PROTECTION/过流保护

SHORT CIRCUIT PROTECTION/短路保护

INPUT PROTECTION/输入保护

 PSE

ROHS COMPLIANT/符合RoHS标准

 CB

Input Voltage/输入电压

100~240VAC

Primary to Secondary

50MΩ MIN

Input Frequency/输入频率

50/60Hz

Efficiency/能效

VI

Input Current/输入电流

1.5A Max

Standby Power/待机电源

0.1W MAX

Inrush Current/浪涌电流

30A Max

Leakage Current

0.25mA MAX

OUTPUT SPECIFICATIONS/输出规格

ENVIRONMENTAL SPECIFICATIONS/工作环境

Output Voltage Range/输出电流范围

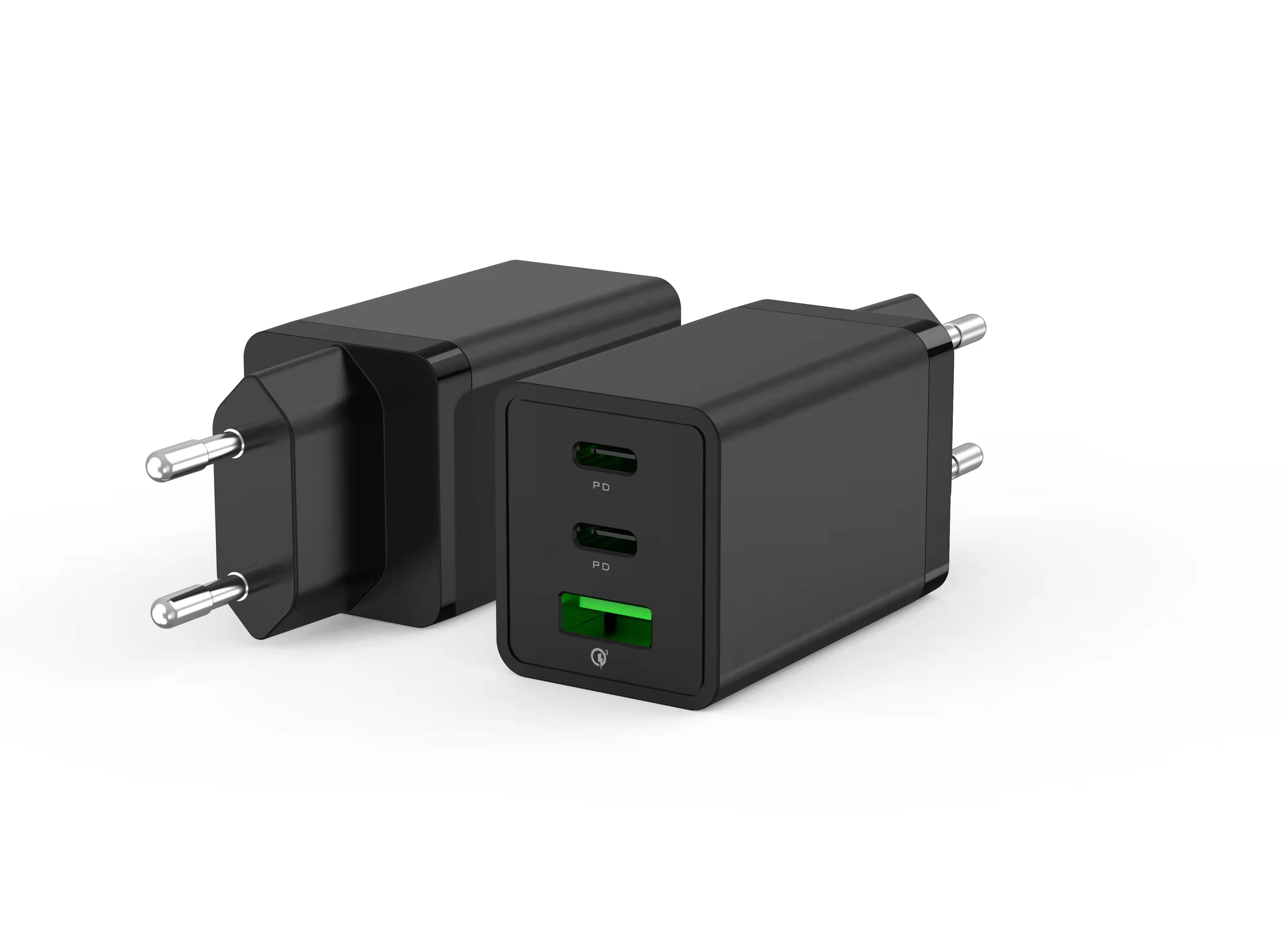

USB-C1：5V 3A,9V 3A ,12V 3A,

15v 3a,20v 3.35a

USB-C2：5V 3A,9V 3A ,12V 3A,15v 3a,20v 3.35a

USB-A:4.5V 5A, 5V 4.5A, 5V 3A, 9V/2A, 12V/1.5A

Operating Temperature/工作温度

10°C~40°C

Output Current Range/输出电流范围

Cooling/

Convection

Output Power Range/输出功率

67W max

Temperature Coefficient/温度系数

0.05%/°C

Short Circuit Protection/短路保护

Automatic Recovery/自动恢复

Humidity/湿度

5~95%RH(non-condensing)

Over-Current Protection/过流保护

Automatic Recovery/自动恢复

Storage Temperature/储存温度

-20°C~+70%°C

Ripple and Noise/纹波和噪音

100mVp-p max

Mechanical Features/外形尺寸

Turn On Time/启动时间

20-30mS normal

Dimensions (Case Size )(尺寸)

L60.5*W37*H32mm

Line Regulation

1% max

SAFETIES STANDARD

Output Regulation/输出范围

±5%

Safeties Standard/安规标准
