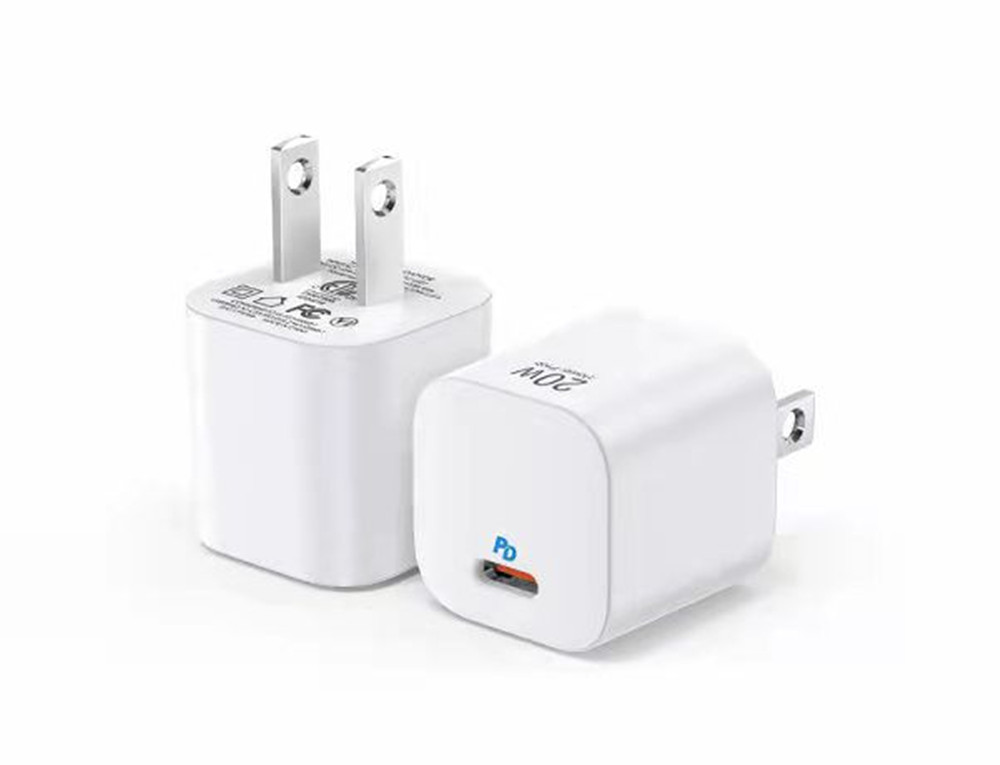

输入：100-240Vac，50/60Hz. 输出TYPE-C: 5V-3A 9V-2.22A 12V1.67A尺寸：L=29 W=29 H=30mm重量：35g认证：CCC ETL FCC PSE
FEATURES/特性
SAFETIES APPROVALS/安规认证
EFFICIENCY VI/六级能效
0-30 WATT OUTPUT POWER/0-30瓦输出电源
OVERCURRENT PROTECTION/过流保护
SHORT CIRCUIT PROTECTION/短路保护
INPUT PROTECTION/输入保护
ROHS COMPLIANT/符合RoHS标准
INPUT SPECIFICATIONS/输入规格
GENERAL SPECIFICATIONS/标准规格
Input Voltage/输入电压
100~240VAC
Primary to Secondary
50MΩ MIN
Input Frequency/输入频率
50/60Hz
Efficiency/能效
VI
Input Current/输入电流
0.6A Max
Standby Power/待机电源
0.1W MAX
Inrush Current/浪涌电流
30A Max
Leakage Current
0.25mA MAX
OUTPUT SPECIFICATIONS/输出规格
ENVIRONMENTAL SPECIFICATIONS/工作环境
Output Voltage Range/输出电流范围
5V 3A , 9V 2.22A , 12V 1.67A,
Operating Temperature/工作温度
10°C~40°C
Output Current Range/输出电流范围
Cooling/
Convection
Output Power Range/输出功率
20W max
Temperature Coefficient/温度系数
0.05%/°C
Short Circuit Protection/短路保护
Automatic Recovery/自动恢复
Humidity/湿度
5~95%RH(non-condensing)
Over-Current Protection/过流保护
Storage Temperature/储存温度
-20°C~+70%°C
Ripple and Noise/纹波和噪音
100mVp-p max
Mechanical Features/外形尺寸
Turn On Time/启动时间
20-30mS normal
Dimensions (Case Size )(尺寸)
L29*W29*H30mm
Line Regulation
1% max
SAFETIES STANDARD
Output Regulation/输出范围
±5%
Safeties Standard/安规标准
